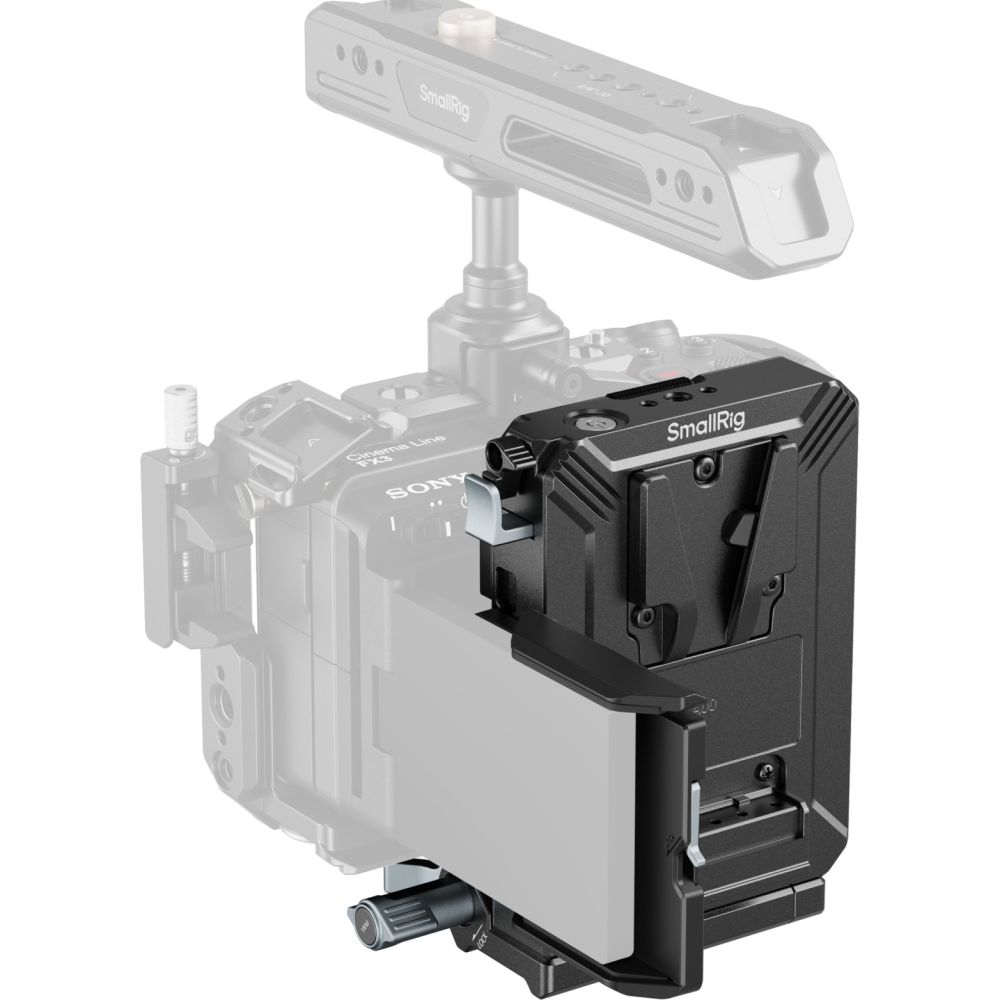

The SmallRig 5227 V-Mount Battery Mount Plate Kit offers a compact, lightweight and efficient all-in-one power solution. This kit includes a V-mount battery plate, an Arca-Swiss quick-release plate and an LCD screen protector.

SmallRig 5227 V-Mount Battery Mount Plate Kit

The SmallRig 5227 V-Mount Battery Mount Plate Kit offers a compact, lightweight, and efficient all-in-one power solution. This kit includes a V-mount battery plate, an Arca-Swiss quick release plate, and an LCD screen protector.

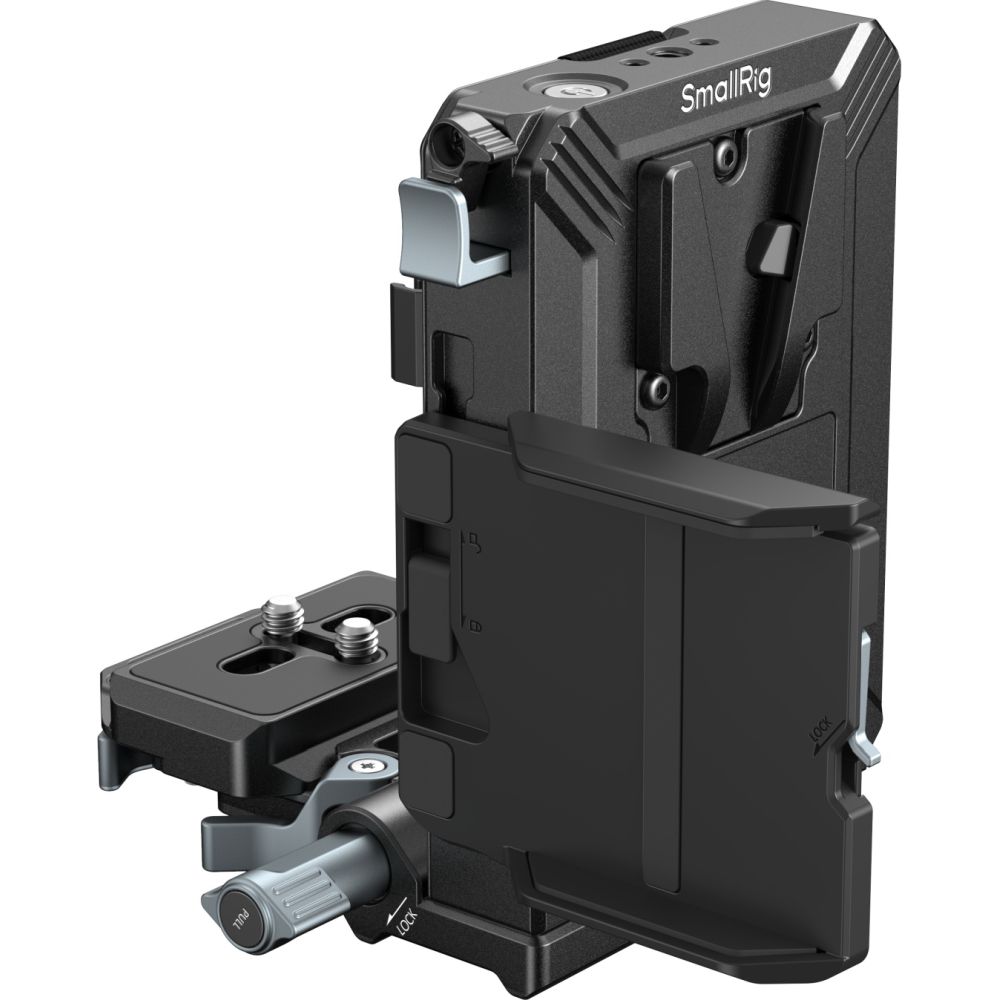

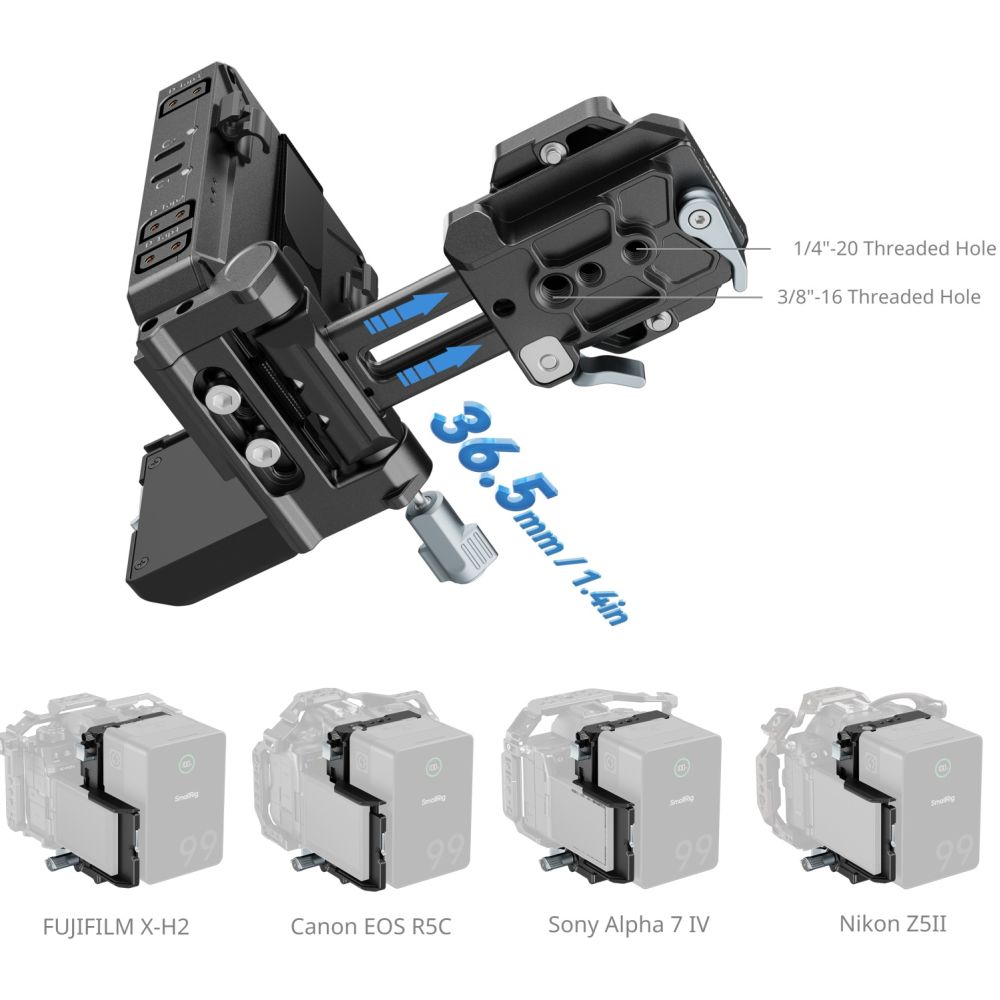

The V-mount battery plate features an Arca-Swiss quick-release mechanism, enabling fast attachment to cameras with tool-free locking and adjustment for rapid battery installation. The Arca-Swiss base plate is equipped with an adjustable locking lever, making it compatible with most Arca-Swiss quick release plates on the market and allowing direct mounting of cages and L-shaped handles with built-in Arca-Swiss plates. In addition, the base plate is retractable to accommodate mirrorless cameras of various sizes.

Strategically positioned power outputs on the V-mount battery plate — including D-Tap and USB-C — allow simultaneous power delivery to multiple devices without interfering with camera or handle operation. The USB-C port supports PD input of up to 65 W, enabling it to function as a V-mount battery charger. The modular LCD screen protector is adjustable in both height and width without tools and fits most mirrorless cameras with a flip-out screen, while protecting against impacts.

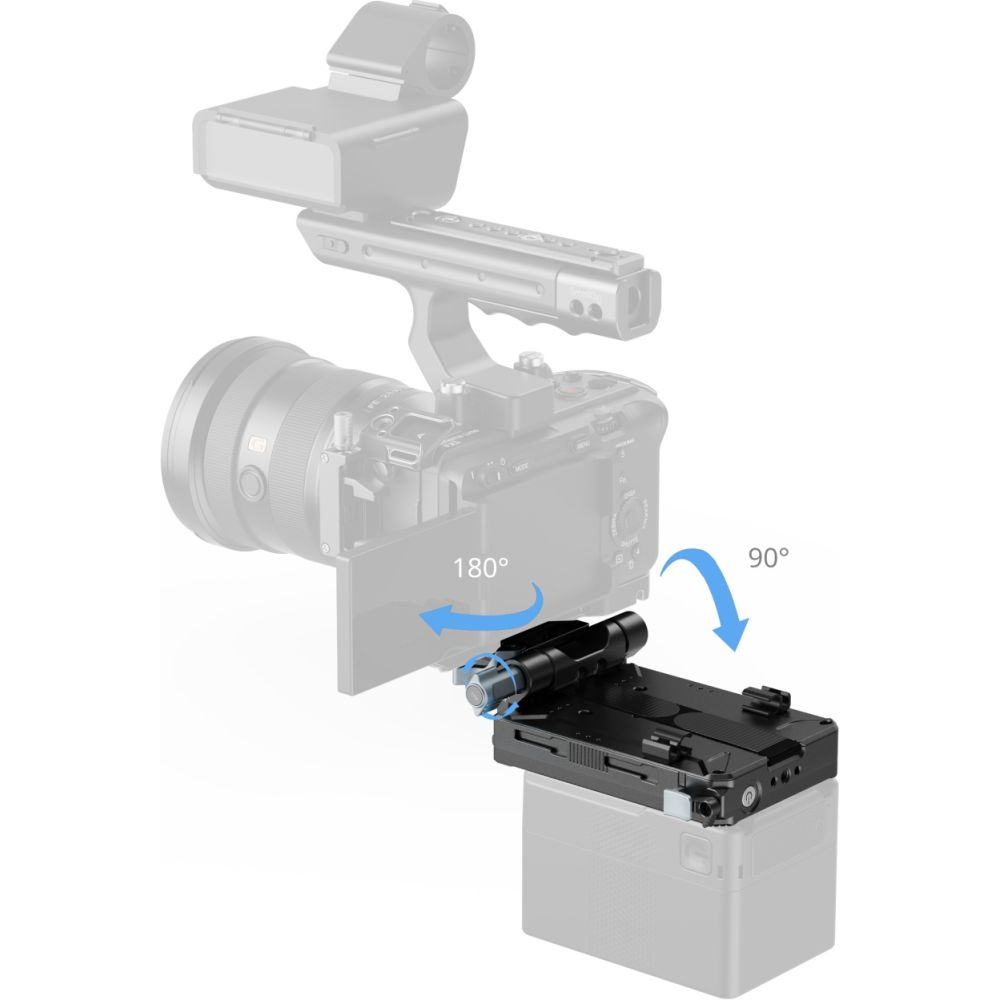

The V-mount battery plate is also rotatable through 180°: 0° for compact storage, 90° for low-profile mounting on a camera, and 180° for easy access to the LCD screen. The stainless steel gear-lock mechanism provides a firm grip for wobble-free footage, while a damping system prevents the battery from dropping during rotation, ensuring the safety of your equipment. The battery release button features a safety lever with adjustable activation, preventing accidental release and ensuring secure operation.

The kit also includes cable clamps and an elastic hook-and-loop fastener for organised cable management, minimising the risk of snagging during filming. The V-mount plate features multiple mounting holes for cable clamps to allow custom routing. The V-mount plate is equipped with multiple 1/4"-20 threaded and positioning holes, enabling the attachment of optional accessories such as magic arms (SmallRig ID 3238B / 3873) for wireless transmitters and professional setups.

Features of the SmallRig 5227 V-Mount Battery Mount Plate Kit

  • Quick-release mechanism: Enables direct installation of V-mount battery for power supply
  • Multi-port power hub: Built-in D-Tap and USB-C ports power multiple devices simultaneously
  • Modular LCD screen protector: With tool-free height and width adjustment to effectively protect screens against impact
  • 180° rotatable design: Enables effortless LCD screen operation whilst maintaining a compact format for easy storage
  • Cable management accessories: Includes cable clamps and elastic hook-and-loop fastening for organised cable management, reducing the risk of interruptions during filming from tangled cables
  • External V-mount battery voltage: 11.0 V–16.8 V
  • Recommended battery nominal capacity: 3500 mAh–20,000 mAh / 14.8 V (nominal)
  • D-Tap (output only): 11.2 V–16.8 V / 8 A (max.) (Per D-Tap port: max. 8 A; three ports combined: max. 18 A)
  • USB-C input/output:
  • USB-C1 output/input: 5 V – 3 A, 9 V – 3 A, 12 V – 3 A, 15 V – 3 A, 20 V – 3.25 A; 65 W (max.)
  • USB-C2 output/input: 5 V – 3 A, 9 V – 3 A, 12 V – 3 A, 15 V – 3 A, 20 V – 3.25 A; 65 W (max.)
  • PD3.0: 5 V – 3 A, 9 V – 3 A, 12 V – 3 A, 15 V – 3 A, 20 V – 3.25 A
  • QC2.0 / AFC: 5 V – 3 A, 9 V – 3 A, 12 V – 3 A
  • QC3.0: 5–12 V – 3 A
  • DCP 1.5 A: 5 V – 0.5–1.5 A
  • PPS: 3.3–20 V – 5 A
  • APPLE 2.4 A: 5 V – 2.4 A
  • Discharge cut-off voltage: 11.2 V (prioritise the battery's own cut-off voltage for over-discharge protection) (over-discharge)
  • Operating temperature: Charging: 0 °C–45 °C / Discharging: –15 °C–60 °C
  • Storage temperature and humidity:
  • Storage period: one month: –20 °C–60 °C
  • Storage period: three months: –20 °C–45 °C
  • Storage period: one year: –20 °C–20 °C (Humid environment)
  • Material: Aluminium alloy, stainless steel, silicone, PC + fibreglass
  • Dimensions: 121.5 × 103.5 × 98.0 mm
  • Weight: 453 g

In the Box

  • 1x V-mount battery mounting plate
  • 1x Arca-Swiss plate
  • 1x LCD screen protector
  • 1x Allen key
  • User manual
Dimensions & Weight
Length (mm) 121.5 mm
Weight (g) 453.0 g
Width (mm) 103.5 mm
Height (mm) 98.0 mm
General
Color Black
Compatibility
Compatible with brand/series Geschikt voor SmallRig V-mount accu's 3579B / 4871 / 4872 / 3580B / 4929 / 4930 / 4292 / 4974 / 4608 / 4984 / 3581B / 4293; Arca-Swiss baseplate compatibel met de meeste Arca-Swiss quick-release plates; werkt met de meeste mirrorless camera's met kantelbaar scherm.
