Feelworld 10.1" LUT11H Ultra Bright Camera Field monitor

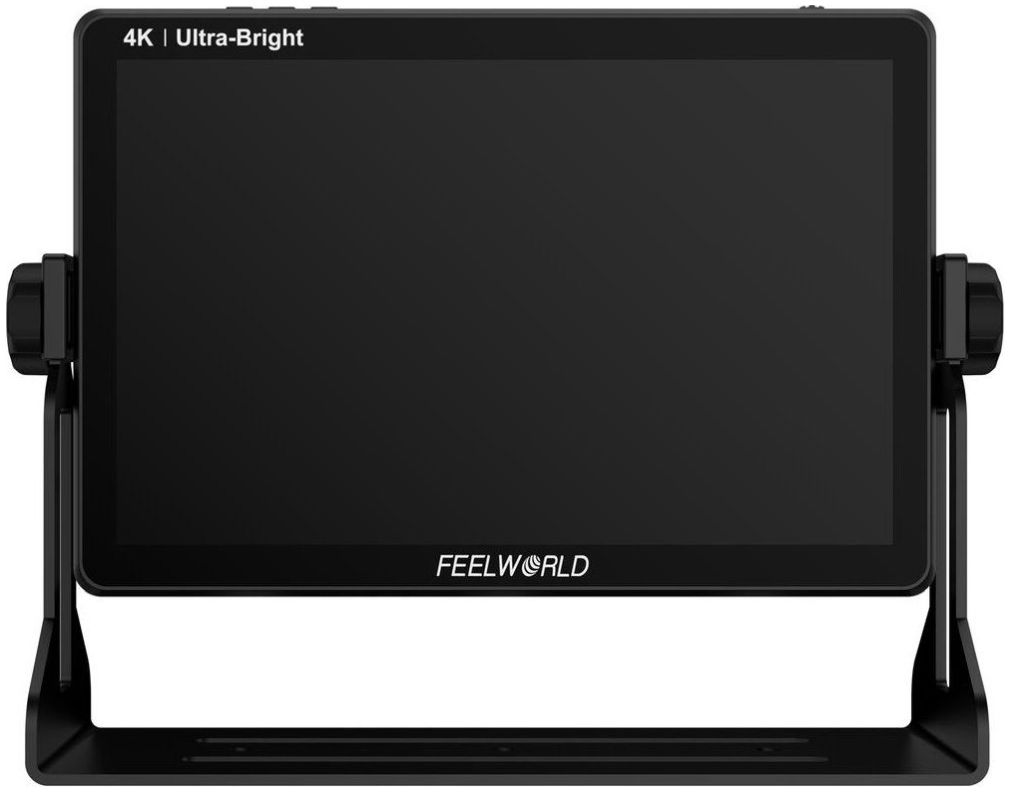

Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor

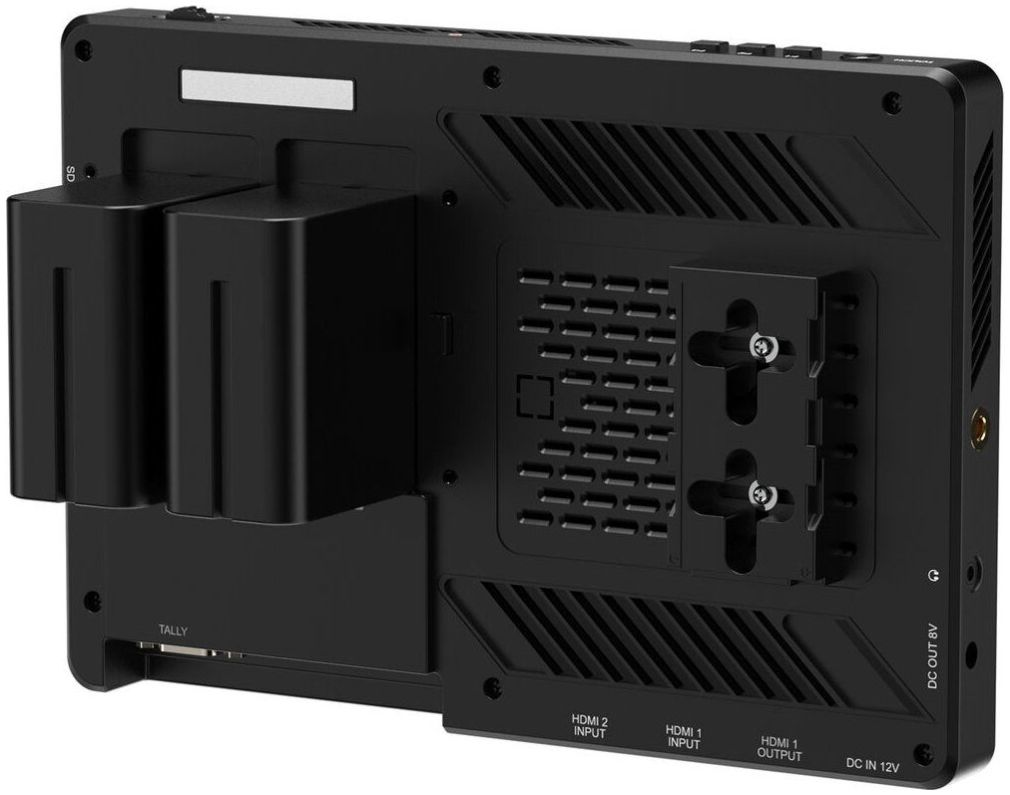

The Feelworld 10.1" LUT11H Ultra Bright Camera Field Monitor has a sharp 224ppi display and supports SD, HD, 2K, UHD 4K and DCI 4K video. At the back, the monitor is equipped with an integrated dual L-series battery slot. The monitor comes with a removable mounting plate that can be used to mount optional accessories, such as wireless transmitters or receivers.

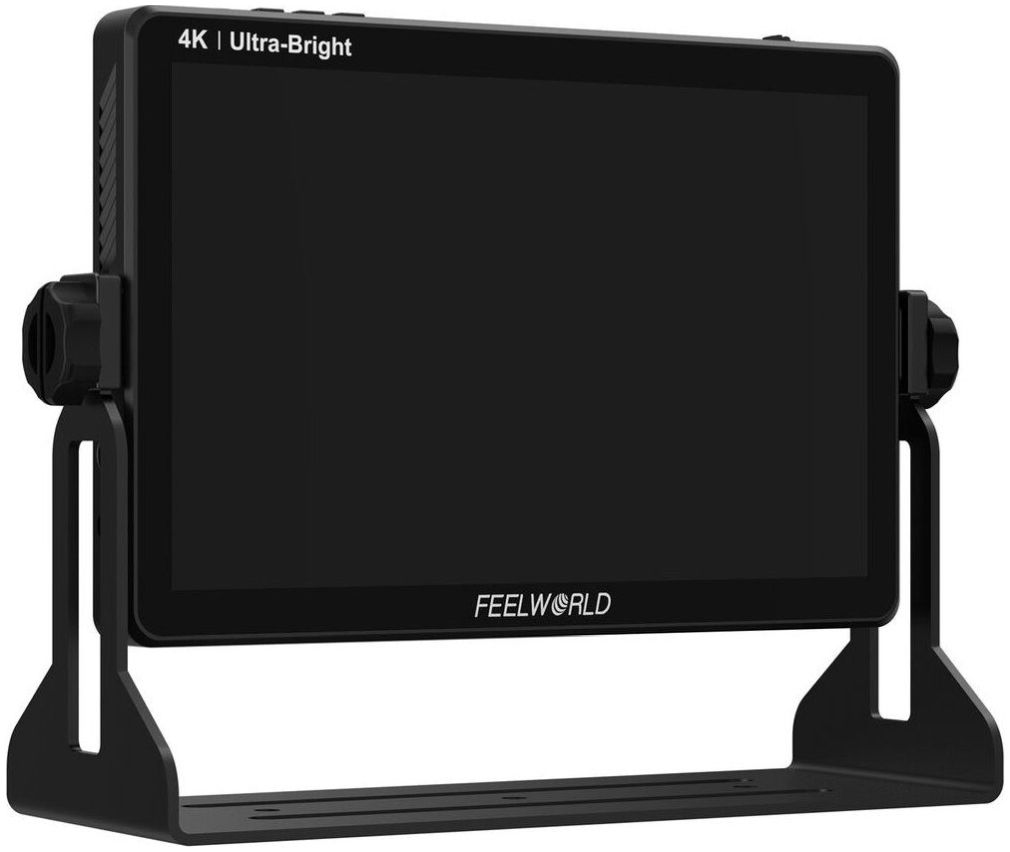

The LCD panel has a resolution of 1920 x 1200 pixels, an aspect ratio of 16:10, a contrast ratio of 800:1 and a measured brightness of 2000cd/m², making it easy to see both indoors and outdoors. The touchscreen allows quick access to settings. The IPS LCD has a viewing angle of 170 degrees without distorting colours and contrast. This means you don't have to sit directly in front of the monitor to see the image properly.

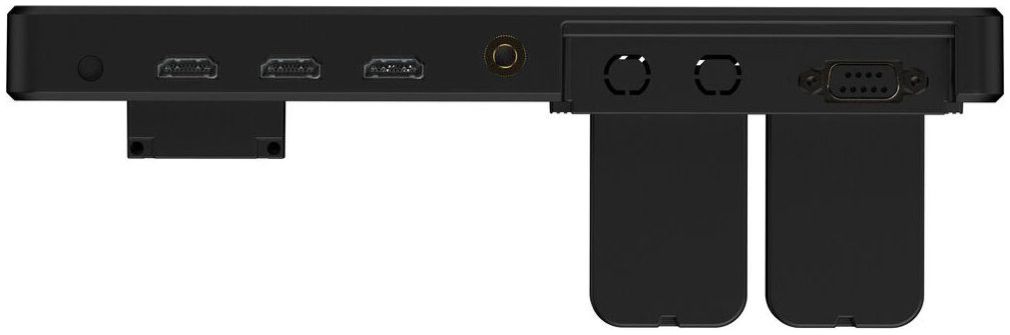

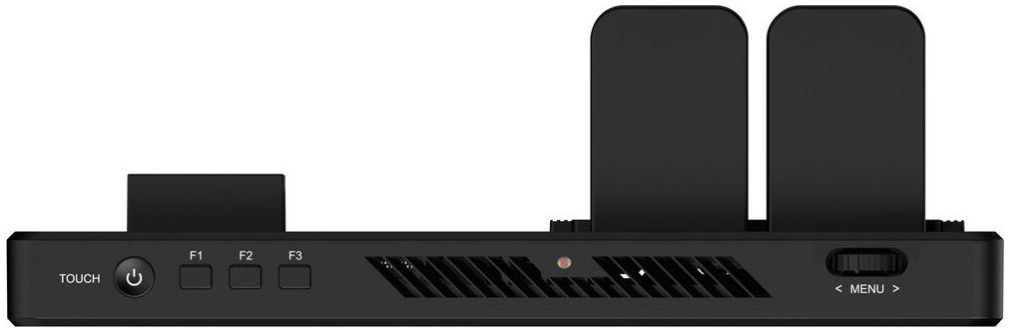

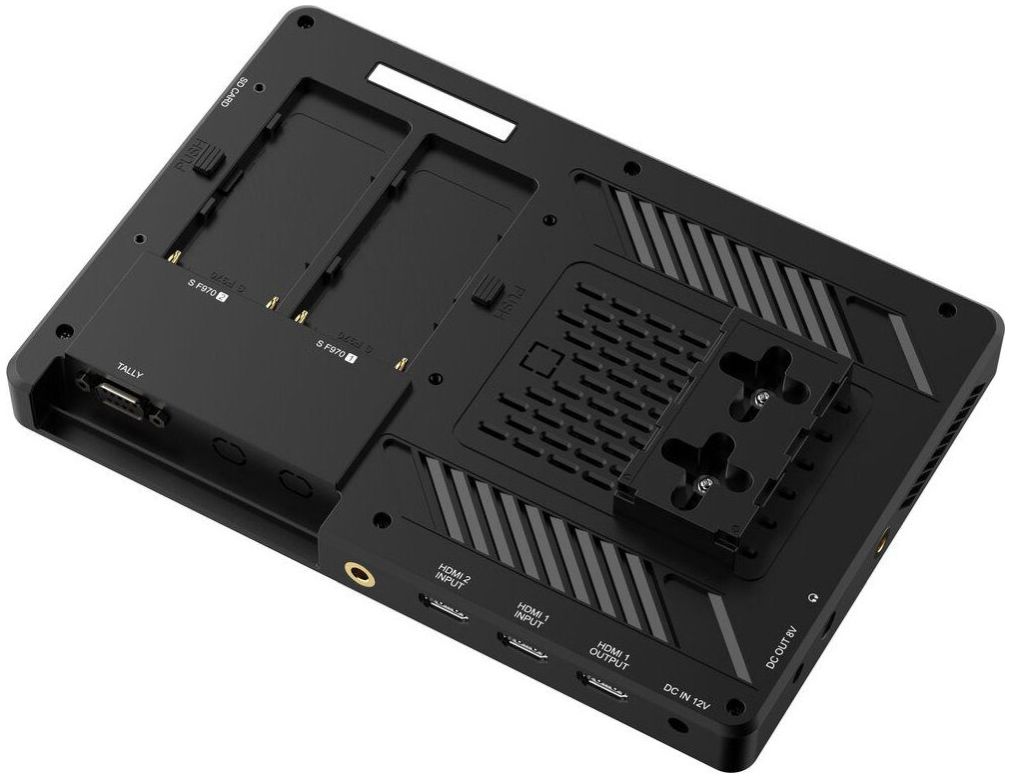

On the bottom of the monitor you will find a DB-9 port, an HDMI output, two HDMI inputs and a DC 12V power input. On the side is the 3.5mm headphone jack and a DC 8V power output for your camera. The bottom also has a 1/4"-20 threaded mount for placement on a magic arm or tripod. On top of the monitor are three custom hotkeys for quickly calling up functions.

The LUT11H supports custom 3D LUTs to accurately assess camera colour on screen. Up to 50 LUTs can be loaded via an integrated SD memory card slot on the side.

This Feelworld monitor supports Rec.709, DCIP3 and BT2020 colour spaces. This ensures that the monitor can meet the colour requirements of different media and output formats, and gives videographers and colour correctors the flexibility they need for accurate colour reproduction.

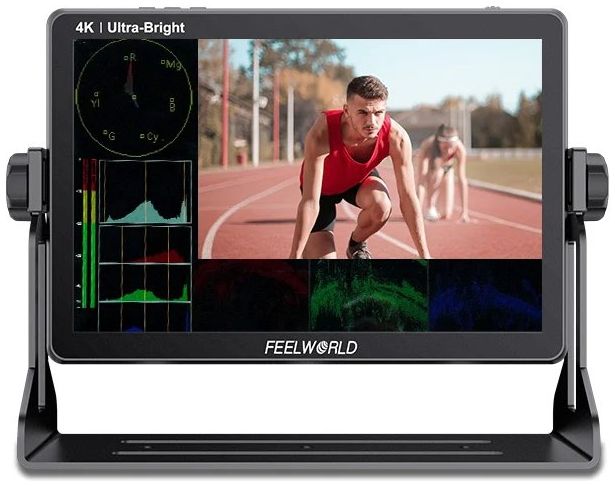

The Feelworld LUT11H has a variety of image evaluation tools built in, including, such as Waveform, Vector, Histogram, RGB Histogram, Focus Peaking, Zoom, Zebra and Safe Frames.

You power the monitor using two NP-F batteries or mains power. The batteries are not included. The monitor has an 8 VDC output to provide extra power to your camera, allowing you to work longer.
