The DJI E-Port V2 Development Kit includes an adapter board that converts the E-Port V2 of the drone into multiple standard hardware interfaces and features a built-in microcontroller (MCU).

DJI E-Port V2 Development Kit

The DJI E-Port V2 Development Kit includes an adapter card that converts the drone's E-Port V2 into multiple standard hardware interfaces and features a built-in microcontroller (MCU). This allows developers to connect hardware devices and carry out SDK development and debugging.

Please note:

When integrating the adapter card into an existing instrument, make sure to design a heat sink and metal enclosure.

If you notice sparks, smoke, a burning smell, or any other abnormalities after powering on the adapter card, switch off the power immediately.

When using all three XT30 power outputs simultaneously, the total output power must remain below the maximum output power of a single aircraft port. Always develop instruments within the specified output limits.

Information on the EU General Product Safety Regulation (GPSR)

A&C Systems

Hogeweg 37C, 5301 LJ Zaltbommel, The Netherlands

Features of the DJI E-Port V2 Development Kit

  • Converts the E-Port V2 from the drone to multiple standard hardware interfaces
  • Equipped with an integrated microcontroller (MCU) for intelligent functionality
  • Supports integration with diverse external payloads and sensors
  • XT30 VCC output: 13.8 V/17.02 V/24 V, 5 A
  • XT30 12 V output: 12.5 V/4 A
  • XT30 5 V output: 5 V/4 A
  • Compatibility: DJI Matrice 400
  • Development board dimensions (L×W×H): 89 × 60 × 13.4 mm

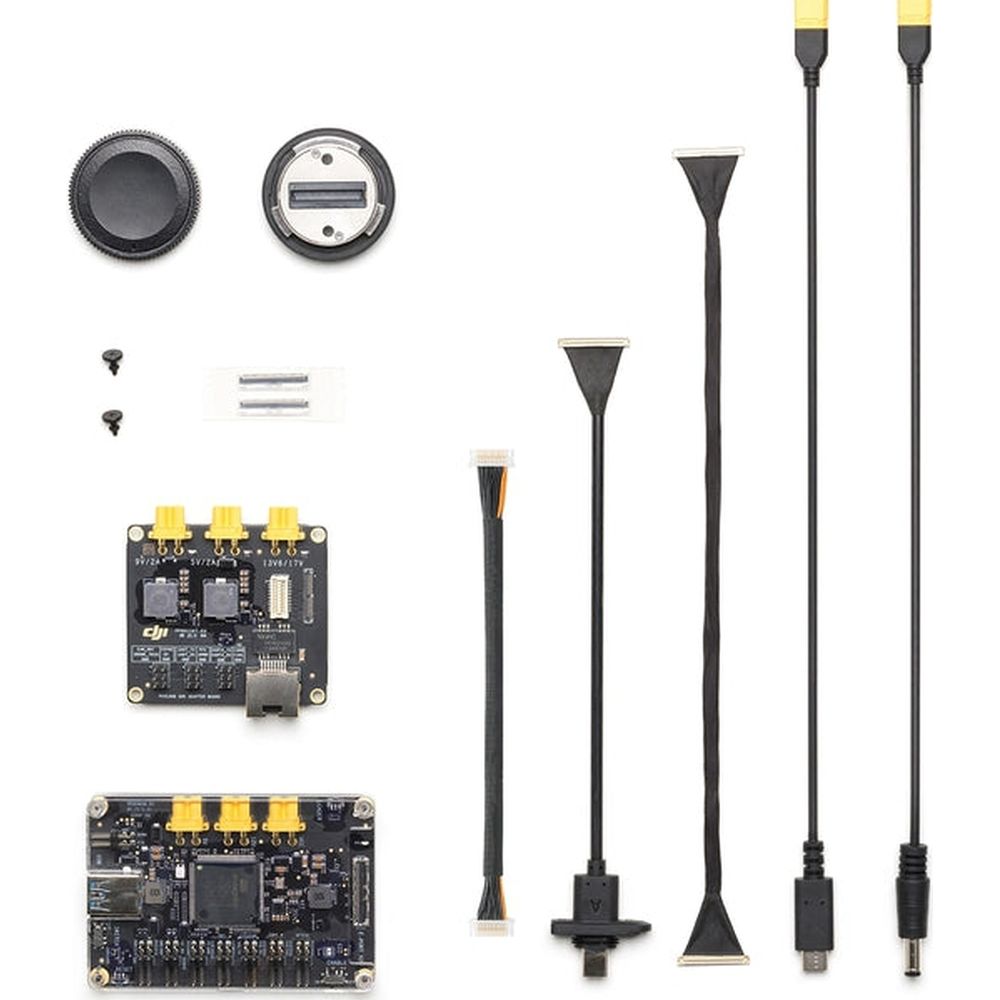

In the Box

  • 1x DJI E-Port V2 development board
  • 1x DJI E-Port V2 coax cable
  • 1x XT30 to DC 5.5 mm power cable
  • 1x XT30 to USB-C power cable
  • 1x SKYPORT V3 coax cable
  • 2x SKYPORT V3 coax cable connector
  • 1x SKYPORT V3 adapter
  • 1x X-Port adapter board
  • 1x X-Port electronic cable
Compatibility
Compatible with brand/series DJI Matrice 400-serie
