Blackmagic StudioBridge 10G PWR

Article number:

12573699

Blackmagic StudioBridge 10G PWR
Blackmagic StudioBridge 10G PWR
  • Blackmagic StudioBridge 10G PWR
  • Blackmagic StudioBridge 10G PWR
  • Blackmagic StudioBridge 10G PWR
€2705,-
On order
Blackmagic StudioBridge 10G PWR
Blackmagic StudioBridge 10G PWR
€2705,-

Get notified

    Free delivery on orders over €100

    Instant discount when you trade in your old camera
    Rated 4.5 by 32,996 photographers

    Luxembourg's largest photo and video specialist

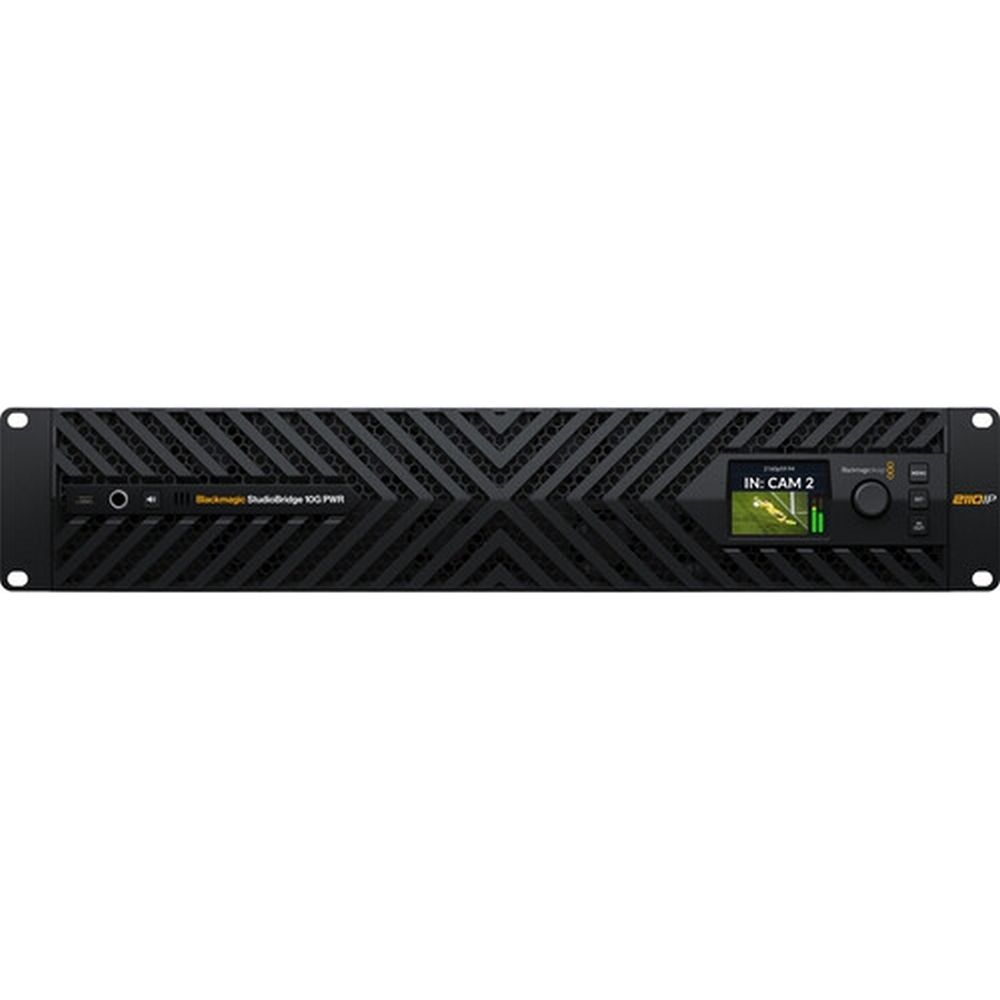

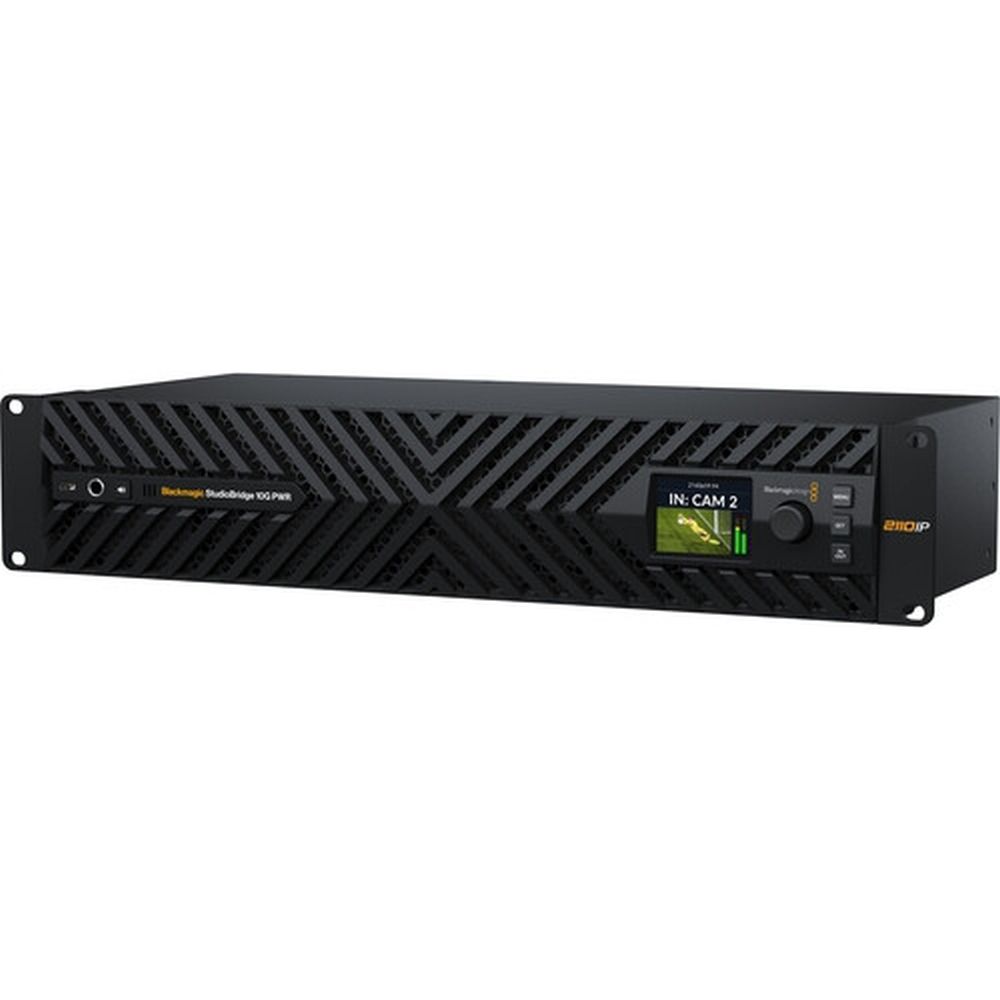

The Blackmagic StudioBridge 10G PWR is a 2U IP video bridge designed to integrate multiple 10G Ethernet streams into redundant 100G broadcast infrastructures with high bandwidth.

Blackmagic StudioBridge 10G PWR

The device supports up to eight channels of SMPTE 2110 video at resolutions up to 4K60, converting 10GbE IP video streams into two 100GbE QSFP28 outputs with SMPTE 2022-7 redundancy for uninterrupted signal transmission. Each input supports automatic format detection for HD and Ultra HD standards, along with 16 channels of embedded audio per stream, ensuring compatibility with modern IP-based production workflows.

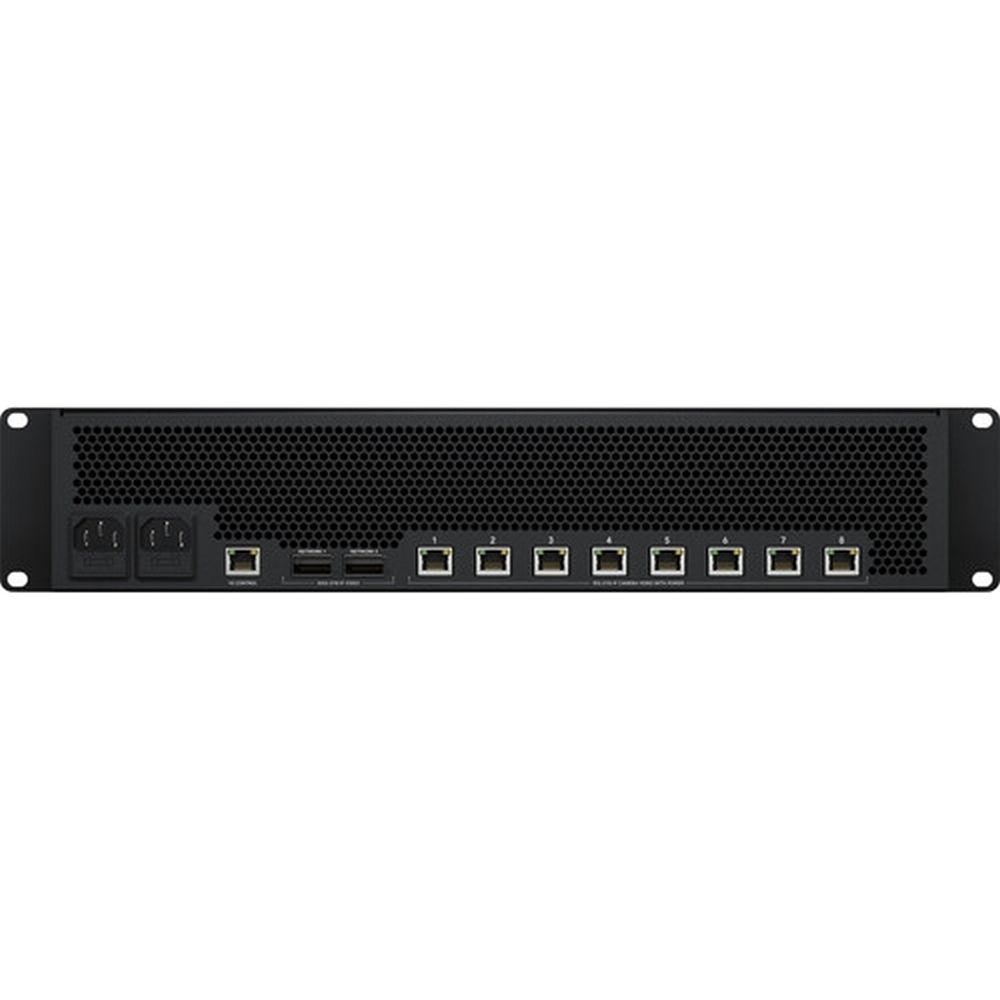

Designed for use in live production and broadcast environments, each of the eight 10GbE RJ45 inputs delivers up to 90W PoE++ power, allowing cameras, converters, and other downstream devices to be connected and powered directly via a single cable. A 2.2-inch LCD display on the front panel with an integrated rotary dial and buttons enables real-time monitoring of video, audio, and system status. A built-in speaker and headphone output provide direct audio quality control. External control is available via a dedicated RJ45 port for NMOS configuration and USB-C for settings and firmware updates. Dual IEC power inputs ensure power supply redundancy and reliable performance.

Information on the EU General Product Safety Regulation (GPSR)

Blackmagic Design

Runcorn WA7 1ST, Christleton Court 5-B, United Kingdom

Features of the Blackmagic StudioBridge 10G PWR

  • Converts 8 channels 4K60 10-bit video
  • 8 x 10GbE video inputs with 90W PoE++
  • Dual redundant 100GbE video outputs
  • SMPTE 2110 IP video compliance
  • 2.2" LCD monitor and control buttons
  • External control via RJ45 and USB-C
  • 16 channels embedded audio per input
  • 2U form factor
  • Dual redundant AC power inputs
  • Built-in headphone jack and speaker
  • Dimensions: 48.3 x 22.1 x 8.9 cm

In the Box

  • Blackmagic StudioBridge 10G PWR
Connections & Connectivity
Inputs 8x 10G ethernet PoE++ (SMPTE-2110 IP video); 2x 100G QSFP28
SDI input
SDI output
General
Type Other
Recording & Codecs
Max. resolution 4K
Power
Mains
